Houlà Bob, ferme la fenêtre du salon, tu as oublié que tu étais dans le Morbihan ??? 71% d’humidité, tu veux faire pousser du riz ?
2 « J'aime »
Si j’ouvre ce sera pire @btncrd

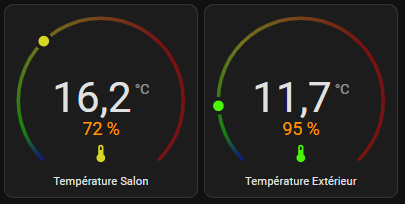

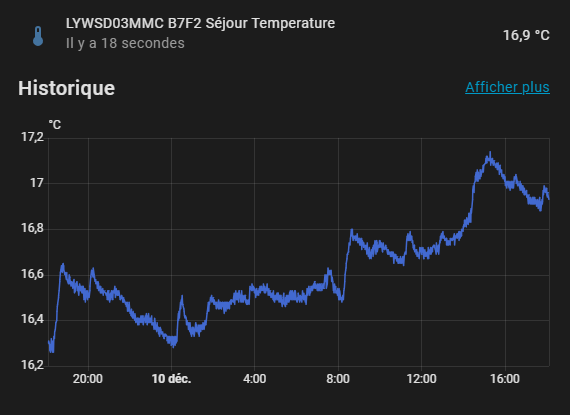

Je chauffe peu, je passe peu de temps chez moi l’hiver, mais 16°C c’est confort
Bob
Il est passé où le micro-climat entre Lorient et Vannes ??? On se croirait dans le Finistère là
Nous remplissons les nappes phréatiques encore quelques jours avant les premiers flocons
Dans le Finistère dont je suis originaire ce qui est bien c’est qu’il ne pleut que la nuit, non je ne suis pas chauvin
Bob
On est pareil, alors que je suis dans le sud
Deux jours que je chauffe pas, c’est le sauna à la maison.

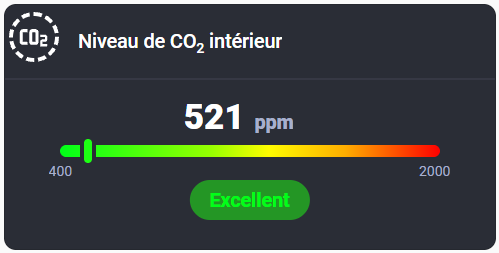

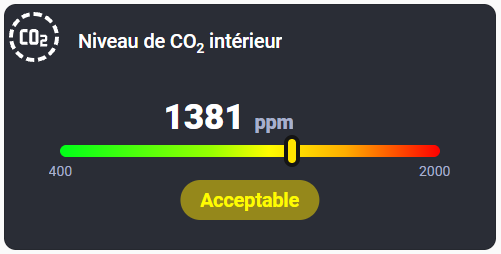

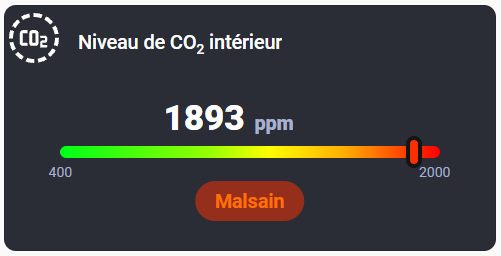

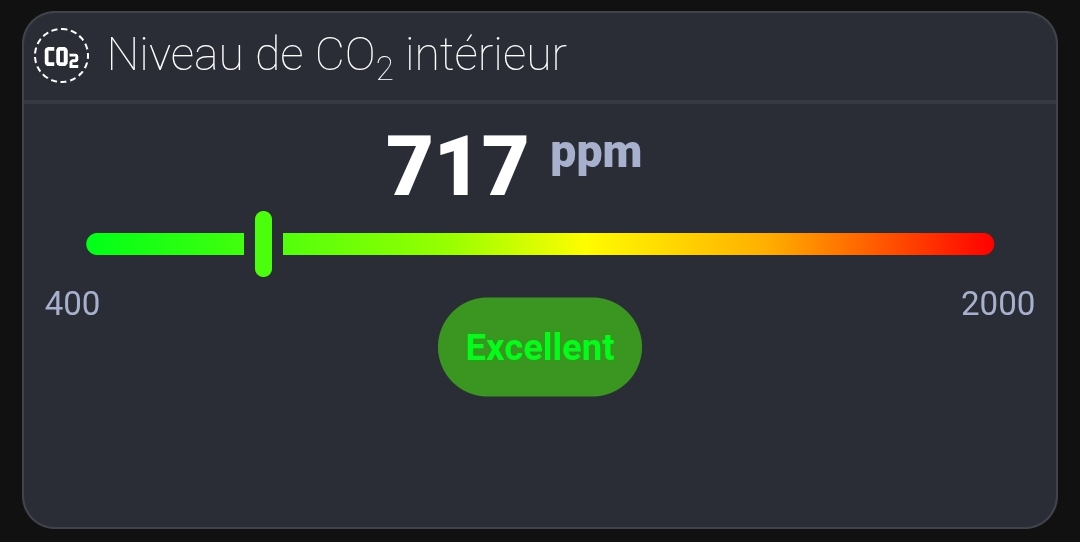

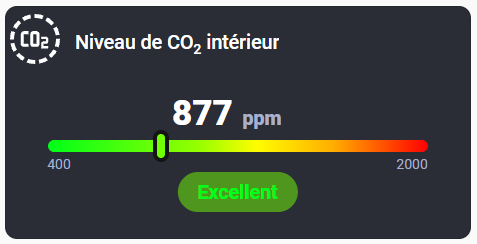

Le code pour la jauge CO2 :
type: custom:button-card
entity: input_number.ppm
show_state: false
show_icon: false
show_name: false
tap_action: none
double_tap_action: none
hold_action: none
custom_fields:
icon:
card:
type: custom:button-card
icon: mdi:molecule-co2
styles:
card:
- aspect-ratio: 1/1
- width: 50px
- padding: 0
- border: 4px dashed white
- border-radius: 50%
- background: none
icon:
- width: 90%
- color: white
name:
card:
type: custom:button-card
name: Niveau de CO<sub style="font-size:1.0rem;">2</sub> intérieur
styles:
card:
- width: 300px
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: white
- font-weight: 500
value:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: true
state_display: |
[[[
return parseFloat(entity.state).toFixed(0);
]]]
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
state:
- color: white
- font-size: 2.5rem
- font-weight: 800
unit:
card:
type: custom:button-card
name: ppm
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 800
min_val:
card:
type: custom:button-card
name: "400"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
max_val:
card:
type: custom:button-card
name: "2000"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
bar:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- height: 12px
- width: 380px
- border-radius: 999px
- border: 0
- padding: 0px
- background: >-
linear-gradient(to right, rgba(0,255,24,1.0) 0%,
rgba(152,255,0,1.0) 40%, rgba(255,252,0,1.0) 55%,
rgba(255,174,0,1.0) 75%, rgba(255,0,0,1.0) 100%)
cursor:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- width: 16px
- height: 32px
- border-radius: 999px
- border: 4px solid rgba(42,45,54,1.0)
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},1.0)`;
]]]
comment:
card:
type: custom:button-card
show_name: true
show_icon: false
show_state: false
name: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "Excellent";
}
if (ppm >= 900 && ppm <= 1150) {
return "Bon";
}
if (ppm >= 1151 && ppm <= 1400) {
return "Acceptable";
}
if (ppm >= 1401 && ppm <= 1600) {
return "Mauvais";
}
if (ppm > 1600) {
return "Malsain";
}
]]]
styles:
card:
- height: 12px
- width: auto
- height: 36px
- border-radius: 999px
- border: 0
- padding: 20px
- background: white
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},0.5)`;
]]]
name:
- font-size: 1.4rem
- font-weight: 600
- color: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "rgba(0,255,24,1.0)";
}
if (ppm >= 900 && ppm <= 1150) {
return "rgba(152,255,0,1.0)";
}
if (ppm >= 1151 && ppm <= 1400) {
return "rgba(255,252,0,1.0)";
}
if (ppm >= 1401 && ppm <= 1600) {
return "rgba(255,174,0,1.0)";
}
if (ppm > 1600) {
return "rgba(255,113,0,1.0)";
}
]]]
styles:
card:
- background-color: rgba(42,45,54,1.0)
- aspect-ratio: 2/1
- cursor: default
custom_fields:
icon:
- position: absolute
- top: 3%
- left: 1%
name:
- position: absolute
- top: 10%
- left: 15%
value:
- position: absolute
- top: 46%
- right: 50%
- margin-right: 1%
- transform: translateY(-50%)
unit:
- position: absolute
- left: 50%
- top: 48%
- margin-left: 1%
- transform: translateY(-50%)
min_val:
- position: absolute
- bottom: 28%
- left: 9%
max_val:
- position: absolute
- bottom: 28%
- right: 9%
comment:
- position: absolute
- left: 50%
- top: 80%
- transform: translate(-50%, -50%)
bar:
- position: absolute
- left: 50%
- top: 60%
- transform: translate(-50%, -50%)
cursor:
- position: absolute
- top: "[[[ return 'calc(60% - 16px)'; ]]]"
- left: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const barWidth = 380;
const halfCursor = 8;
const offsetPx = (barWidth * percent) / 100;
return `calc(50% - ${barWidth/2}px + ${offsetPx}px - ${halfCursor}px)`;
]]]
Il y a encore des choses améliorables : actuellement la valeur chiffrée est centrée sur la carte, en réduisant un peu la taille de la police, je peux la placer automatiquement pile au dessus du curseur. Je peux mettre une barre (trait) entre le nom et la jauge, etc.
Là en revanche, il me faut du visuel pour comprendre ce que tu veux
1 « J'aime »

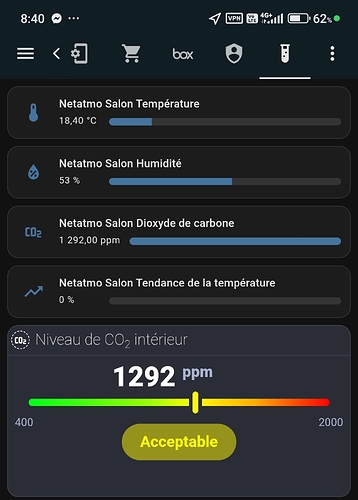

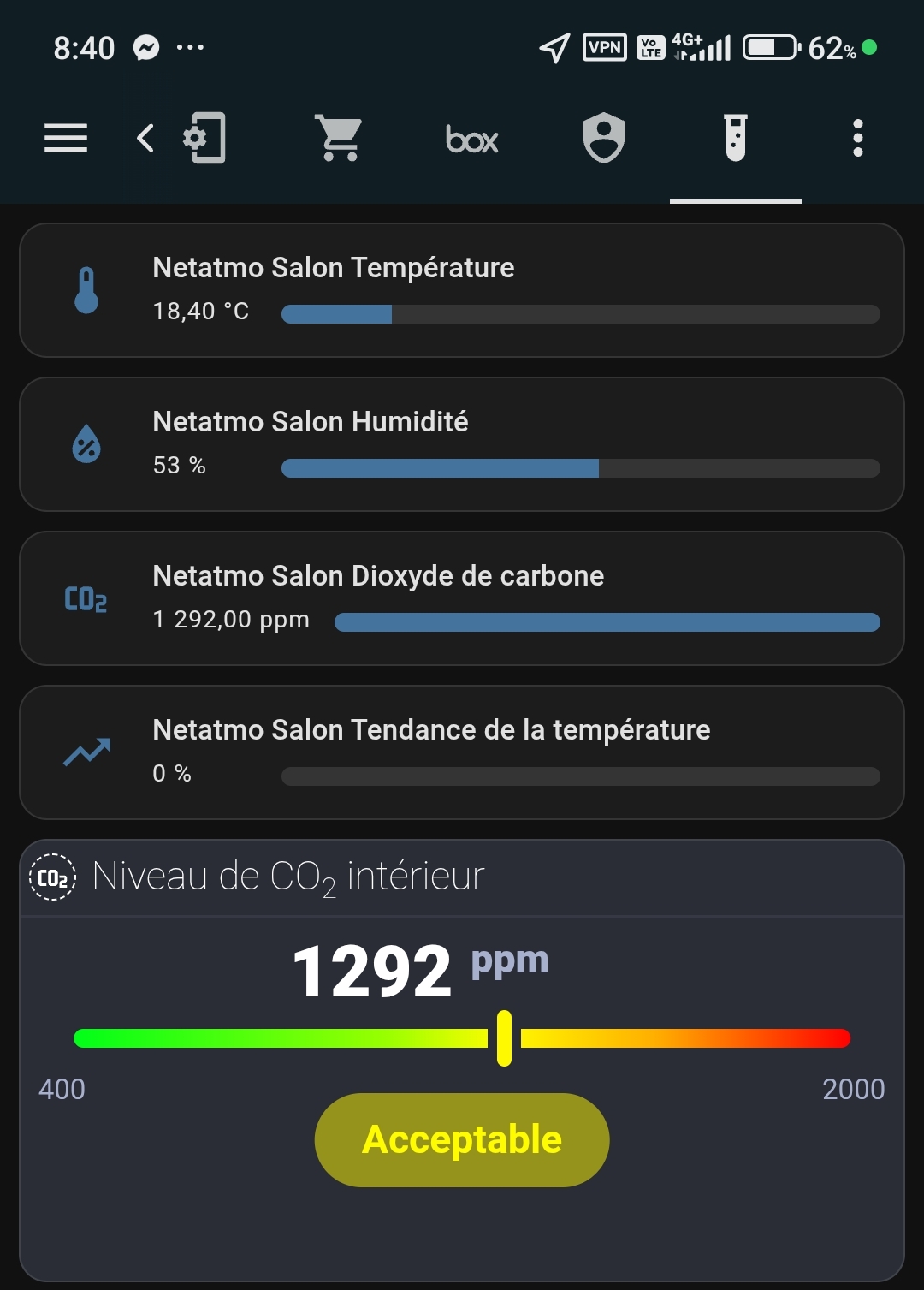

C’est de ça dont je parlais @WarC0zes
type: custom:button-card
entity: input_number.ppm
show_state: false
show_icon: false
show_name: false
tap_action: none
double_tap_action: none
hold_action: none
custom_fields:
icon:
card:
type: custom:button-card
icon: mdi:molecule-co2
styles:
card:
- aspect-ratio: 1/1
- width: 50px
- padding: 0
- border: 4px dashed white
- border-radius: 50%
- background: none
icon:
- width: 90%
- color: white
name:
card:
type: custom:button-card
name: Niveau de CO<sub style="font-size:1.0rem;">2</sub> intérieur
styles:
card:
- width: 300px
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: white
- font-weight: 500
separation:
card:
type: custom:button-card
styles:
card:
- width: 600px
- height: 1px
- padding: 0
- border: 1px solid rgba(54,56,68,1.0)
- border-radius: 0
- background: none
value:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: true
state_display: |
[[[
return parseFloat(entity.state).toFixed(0);
]]]
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
state:
- color: white
- font-size: 2.5rem
- font-weight: 800
unit:
card:
type: custom:button-card
name: ppm
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 800
min_val:
card:
type: custom:button-card
name: "400"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
max_val:
card:
type: custom:button-card
name: "2000"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
bar:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- height: 12px
- width: 380px
- border-radius: 999px
- border: 0
- padding: 0px
- background: >-
linear-gradient(to right, rgba(0,255,24,1.0) 0%,
rgba(152,255,0,1.0) 40%, rgba(255,252,0,1.0) 55%,
rgba(255,174,0,1.0) 75%, rgba(255,0,0,1.0) 100%)
cursor:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- width: 16px
- height: 32px
- border-radius: 999px
- border: 4px solid rgba(42,45,54,1.0)
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},1.0)`;
]]]
comment:
card:
type: custom:button-card
show_name: true
show_icon: false
show_state: false
name: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "Excellent";
}
if (ppm >= 900 && ppm <= 1150) {
return "Bon";
}
if (ppm >= 1151 && ppm <= 1400) {
return "Acceptable";
}
if (ppm >= 1401 && ppm <= 1600) {
return "Mauvais";
}
if (ppm > 1600) {
return "Malsain";
}
]]]
styles:
card:
- height: 12px
- width: auto
- height: 36px
- border-radius: 999px
- border: 0
- padding: 20px
- background: white
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},0.5)`;
]]]
name:
- font-size: 1.4rem
- font-weight: 600
- color: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "rgba(0,255,24,1.0)";
}
if (ppm >= 900 && ppm <= 1150) {
return "rgba(152,255,0,1.0)";
}
if (ppm >= 1151 && ppm <= 1400) {
return "rgba(255,252,0,1.0)";
}
if (ppm >= 1401 && ppm <= 1600) {
return "rgba(255,174,0,1.0)";
}
if (ppm > 1600) {
return "rgba(255,113,0,1.0)";
}
]]]
styles:
card:
- background-color: rgba(42,45,54,1.0)
- aspect-ratio: 2/1
- cursor: default
custom_fields:
icon:
- position: absolute
- top: 3%
- left: 1%
name:
- position: absolute
- top: 10%
- left: 15%
separation:
- position: absolute
- top: 30%
- left: 0%
value:
- position: absolute
- top: 46%
- right: 50%
- margin-right: 1%
- transform: translateY(-50%)
unit:
- position: absolute
- left: 50%
- top: 48%
- margin-left: 1%
- transform: translateY(-50%)
min_val:
- position: absolute
- bottom: 28%
- left: 9%
max_val:
- position: absolute
- bottom: 28%
- right: 9%
comment:
- position: absolute
- left: 50%
- top: 80%
- transform: translate(-50%, -50%)
bar:
- position: absolute
- left: 50%
- top: 60%
- transform: translate(-50%, -50%)
cursor:
- position: absolute
- top: "[[[ return 'calc(60% - 16px)'; ]]]"
- left: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const barWidth = 380;
const halfCursor = 8;
const offsetPx = (barWidth * percent) / 100;
return `calc(50% - ${barWidth/2}px + ${offsetPx}px - ${halfCursor}px)`;
]]]
J’en ai profité pour changer la couleur de bordure du « cursor » qui avait disparue et du coup apparaissait en noir.
2 « J'aime »
N’oublies pas de préciser que la nuit dure 20 heures en hiver et 18 heures en été dans le Finistère
En fait j’exagère, comme il n’y a que 2 saisons dans le Finistère (l’automne et le 15 août), le 15 août, la nuit ne dure que 12 heures (et 18 heures pour l’automne)
c’est top tout ça, je vais regarder et essayer de comprendre merci beaucoup
Dans le Finistère nous sommes les derniers à voir le soleil se coucher, sur la mer, le matin, rien ne presse pour se lever
Bob
1 « J'aime »
Bonjour,
Oui il faut que tu réduise la taille de la « bar » mais aussi la valeur de const barWidth = 380
Il faudra mettre à la place de 380 la valeur de largeur de la « bar », le bloc ci-dessous est ce qui permet de définir la position du « cursor » sur la « bar » :
cursor:
- position: absolute
- top: "[[[ return 'calc(60% - 16px)'; ]]]"
- left: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const barWidth = 380;
const halfCursor = 8;
const offsetPx = (barWidth * percent) / 100;
return `calc(50% - ${barWidth/2}px + ${offsetPx}px - ${halfCursor}px)`;
]]]

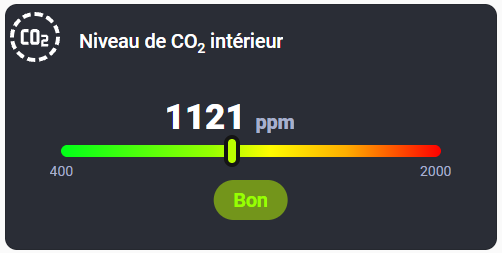

J’approche de ce que j’ai besoin :
Il faut que j’identifie la taille du commentaire et du fond encore :
type: custom:button-card
entity: sensor.netatmo_salon_dioxyde_de_carbone
show_state: false
show_icon: false
show_name: false
tap_action: none
double_tap_action: none
hold_action: none
custom_fields:
icon:
card:
type: custom:button-card
icon: mdi:molecule-co2
styles:
card:
- aspect-ratio: 1/1
- width: 20px
- padding: 0
- border: 1px dashed white
- border-radius: 50%
- background: none
icon:
- width: 90%
- color: white
name:
card:
type: custom:button-card
name: Niveau de CO<sub style="font-size:1.0rem;">2</sub> intérieur
styles:
card:
- width: 300px
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: white
- font-weight: 100
separation:
card:
type: custom:button-card
styles:
card:
- width: 600px
- height: 1px
- padding: 0
- border: 1px solid rgba(54,56,68,1.0)
- border-radius: 0
- background: none
value:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: true
state_display: |
[[[
return parseFloat(entity.state).toFixed(0);
]]]
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
state:
- color: white
- font-size: 2.5rem
- font-weight: 800
unit:
card:
type: custom:button-card
name: ppm
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 800
min_val:
card:
type: custom:button-card
name: "400"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
max_val:
card:
type: custom:button-card
name: "2000"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
bar:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- height: 8px
- width: 330px
- border-radius: 999px
- border: 0
- padding: 0px
- background: >-
linear-gradient(to right, rgba(0,255,24,1.0) 0%,
rgba(152,255,0,1.0) 40%, rgba(255,252,0,1.0) 55%,
rgba(255,174,0,1.0) 75%, rgba(255,0,0,1.0) 100%)
cursor:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- width: 14px
- height: 32px
- border-radius: 999px
- border: 4px solid rgba(42,45,54,1.0)
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},1.0)`;
]]]
comment:
card:
type: custom:button-card
show_name: true
show_icon: false
show_state: false
name: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "Excellent";
}
if (ppm >= 900 && ppm <= 1150) {
return "Bon";
}
if (ppm >= 1151 && ppm <= 1400) {
return "Acceptable";
}
if (ppm >= 1401 && ppm <= 1600) {
return "Mauvais";
}
if (ppm > 1600) {
return "Malsain";
}
]]]
styles:
card:
- height: 12px
- width: auto
- height: 36px
- border-radius: 999px
- border: 0
- padding: 20px
- background: white
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},0.5)`;
]]]
name:
- font-size: 1.4rem
- font-weight: 600
- color: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "rgba(0,255,24,1.0)";
}
if (ppm >= 900 && ppm <= 1150) {
return "rgba(152,255,0,1.0)";
}
if (ppm >= 1151 && ppm <= 1400) {
return "rgba(255,252,0,1.0)";
}
if (ppm >= 1401 && ppm <= 1600) {
return "rgba(255,174,0,1.0)";
}
if (ppm > 1600) {
return "rgba(255,113,0,1.0)";
}
]]]
styles:
card:
- background-color: rgba(42,45,54,1.0)
- aspect-ratio: 2/1
- cursor: default
custom_fields:
icon:
- position: absolute
- top: 3%
- left: 1%
name:
- position: absolute
- top: 3%
- left: 8%
separation:
- position: absolute
- top: 17%
- left: 0%
value:
- position: absolute
- top: 30%
- right: 50%
- margin-right: 1%
- transform: translateY(-50%)
unit:
- position: absolute
- left: 50%
- top: 27%
- margin-left: 1%
- transform: translateY(-50%)
min_val:
- position: absolute
- top: 53%
- left: 2%
max_val:
- position: absolute
- top: 53%
- right: 2%
comment:
- position: absolute
- left: 50%
- top: 68%
- transform: translate(-50%, -50%)
bar:
- position: absolute
- left: 50%
- top: 45%
- transform: translate(-50%, -50%)
cursor:
- position: absolute
- top: "[[[ return 'calc(45% - 16px)'; ]]]"
- left: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const barWidth = 330;
const halfCursor = 8;
const offsetPx = (barWidth * percent) / 100;
return `calc(50% - ${barWidth/2}px + ${offsetPx}px - ${halfCursor}px)`;
]]]

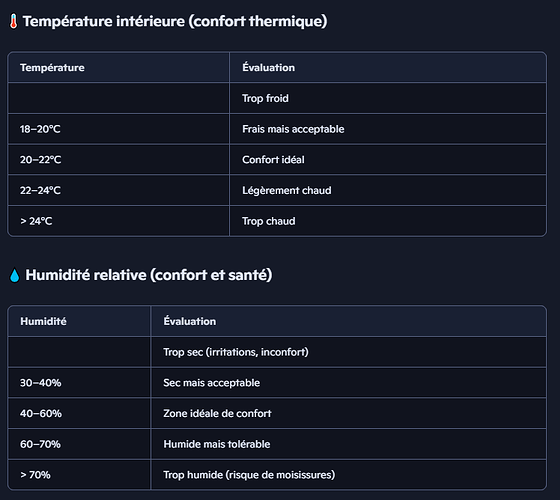

Il faudrait que je trouve les valeurs pour les autres capteurs
La taille (largeur) du commentaire (« comment ») s’adapte automatiquement à son contenu avec un padding droit et gauche de 20px (espacement entre les bords droit et gauche du custom_fields et son contenu)
comment:
card:
type: custom:button-card
show_name: true
show_icon: false
show_state: false
name: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "Excellent";
}
if (ppm >= 900 && ppm <= 1150) {
return "Bon";
}
if (ppm >= 1151 && ppm <= 1400) {
return "Acceptable";
}
if (ppm >= 1401 && ppm <= 1600) {
return "Mauvais";
}
if (ppm > 1600) {
return "Malsain";
}
]]]
styles:
card:
- height: 12px
- width: auto
- height: 36px <------- hauteur du custom_fields
- border-radius: 999px
- border: 0
- padding: 20px <------- padding global : les dimensions du custom_fields gardent un espace de 20 pixels par rapports aux bords de celui-ci
- background: white
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},0.5)`;
]]]
name:
- font-size: 1.4rem <------ permet d'augmenter ou diminuer la taille de la police
- font-weight: 600
- color: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "rgba(0,255,24,1.0)";
}
if (ppm >= 900 && ppm <= 1150) {
return "rgba(152,255,0,1.0)";
}
if (ppm >= 1151 && ppm <= 1400) {
return "rgba(255,252,0,1.0)";
}
if (ppm >= 1401 && ppm <= 1600) {
return "rgba(255,174,0,1.0)";
}
if (ppm > 1600) {
return "rgba(255,113,0,1.0)";
}
]]]

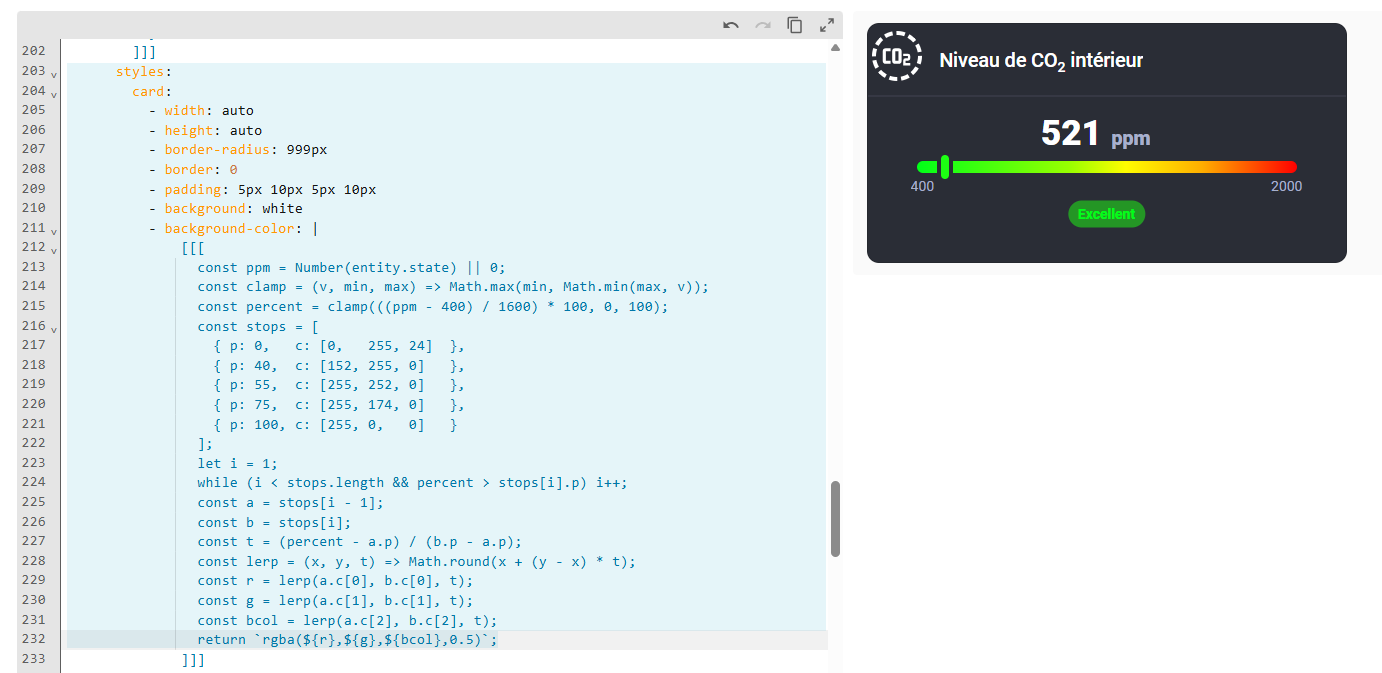

ci-dessus un exemple avec un padding adapté pour les 4 côtés, une hauteur et une largeur du custom_fields en auto et une taille de police réduite.

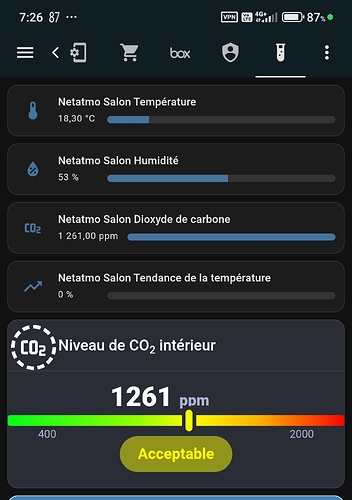

J’avance petit à petit, maintenant il faudrait que je puisse réduire en hauteur la carte du fond pour avoir moins d’espace en bas
type: custom:button-card
entity: sensor.netatmo_salon_dioxyde_de_carbone
show_state: false
show_icon: false
show_name: false
tap_action: none
double_tap_action: none
hold_action: none
custom_fields:
icon:
card:
type: custom:button-card
icon: mdi:molecule-co2
styles:
card:
- aspect-ratio: 1/1
- width: 20px
- padding: 0
- border: 1px dashed white
- border-radius: 50%
- background: none
icon:
- width: 90%
- color: white
name:
card:
type: custom:button-card
name: Niveau de CO<sub style="font-size:1.0rem;">2</sub> intérieur
styles:
card:
- width: 300px
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: white
- font-weight: 100
separation:
card:
type: custom:button-card
styles:
card:
- width: 600px
- height: 1px
- padding: 0
- border: 1px solid rgba(54,56,68,1.0)
- border-radius: 0
- background: none
value:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: true
state_display: |
[[[
return parseFloat(entity.state).toFixed(0);
]]]
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
state:
- color: white
- font-size: 2.5rem
- font-weight: 800
unit:
card:
type: custom:button-card
name: ppm
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.4rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 800
min_val:
card:
type: custom:button-card
name: "400"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
max_val:
card:
type: custom:button-card
name: "2000"
styles:
card:
- width: auto
- padding: 0
- border: none
- border-radius: 0
- background: none
name:
- font-size: 1.0rem
- align-self: start
- justify-self: start
- color: rgba(167,176,205,1.0)
- font-weight: 400
bar:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- height: 8px
- width: 330px
- border-radius: 999px
- border: 0
- padding: 0px
- background: >-
linear-gradient(to right, rgba(0,255,24,1.0) 0%,
rgba(152,255,0,1.0) 40%, rgba(255,252,0,1.0) 55%,
rgba(255,174,0,1.0) 75%, rgba(255,0,0,1.0) 100%)
cursor:
card:
type: custom:button-card
show_name: false
show_icon: false
show_state: false
styles:
card:
- width: 14px
- height: 32px
- border-radius: 999px
- border: 4px solid rgba(42,45,54,1.0)
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},1.0)`;
]]]
comment:
card:
type: custom:button-card
show_name: true
show_icon: false
show_state: false
name: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "Excellent";
}
if (ppm >= 900 && ppm <= 1150) {
return "Bon";
}
if (ppm >= 1151 && ppm <= 1400) {
return "Acceptable";
}
if (ppm >= 1401 && ppm <= 1600) {
return "Mauvais";
}
if (ppm > 1600) {
return "Malsain";
}
]]]
styles:
card:
- height: 12px
- width: auto
- height: 36px
- border-radius: 999px
- border: 0
- padding: 10px
- background: white
- background-color: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const stops = [
{ p: 0, c: [0, 255, 24] },
{ p: 40, c: [152, 255, 0] },
{ p: 55, c: [255, 252, 0] },
{ p: 75, c: [255, 174, 0] },
{ p: 100, c: [255, 0, 0] }
];
let i = 1;
while (i < stops.length && percent > stops[i].p) i++;
const a = stops[i - 1];
const b = stops[i];
const t = (percent - a.p) / (b.p - a.p);
const lerp = (x, y, t) => Math.round(x + (y - x) * t);
const r = lerp(a.c[0], b.c[0], t);
const g = lerp(a.c[1], b.c[1], t);
const bcol = lerp(a.c[2], b.c[2], t);
return `rgba(${r},${g},${bcol},0.5)`;
]]]
name:
- font-size: 1.1rem
- font-weight: 600
- color: |
[[[
const ppm = Number(entity.state) || 0;
if (ppm < 900) {
return "rgba(0,255,24,1.0)";
}
if (ppm >= 900 && ppm <= 1150) {
return "rgba(152,255,0,1.0)";
}
if (ppm >= 1151 && ppm <= 1400) {
return "rgba(255,252,0,1.0)";
}
if (ppm >= 1401 && ppm <= 1600) {
return "rgba(255,174,0,1.0)";
}
if (ppm > 1600) {
return "rgba(255,113,0,1.0)";
}
]]]
styles:
card:
- background-color: rgba(42,45,54,1.0)
- aspect-ratio: 2/1
- cursor: default
custom_fields:
icon:
- position: absolute
- top: 3%
- left: 1%
name:
- position: absolute
- top: 3%
- left: 8%
separation:
- position: absolute
- top: 17%
- left: 0%
value:
- position: absolute
- top: 30%
- right: 50%
- margin-right: 1%
- transform: translateY(-50%)
unit:
- position: absolute
- left: 50%
- top: 27%
- margin-left: 1%
- transform: translateY(-50%)
min_val:
- position: absolute
- top: 53%
- left: 2%
max_val:
- position: absolute
- top: 53%
- right: 2%
comment:
- position: absolute
- left: 50%
- top: 65%
- transform: translate(-50%, -50%)
bar:
- position: absolute
- left: 50%
- top: 45%
- transform: translate(-50%, -50%)
cursor:
- position: absolute
- top: "[[[ return 'calc(45% - 16px)'; ]]]"
- left: |
[[[
const ppm = Number(entity.state) || 0;
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const percent = clamp(((ppm - 400) / 1600) * 100, 0, 100);
const barWidth = 330;
const halfCursor = 8;
const offsetPx = (barWidth * percent) / 100;
return `calc(50% - ${barWidth/2}px + ${offsetPx}px - ${halfCursor}px)`;
]]]
modifie l’aspect-ratio dans les styles de la carte support - aspect-ratio: 2.5/1 ou aspect-ratio: 3/1 ou n’importe quelle valeur entre les deux jusqu’à ce que la hauteur te convienne
1 « J'aime »
Ah oui, mince du coup ça écrase tout, je pensais qu’on définissait la hauteur en pixels, pas grave je vais réajuster mes autres positions
Oui, il faut réajuster tes éléments en fonction de la hauteur de la carte support car si tu réduis trop celle-ci il y a de fortes chances que des éléments se superposent
1 « J'aime »
