Problème d’integration prises Zigbee
Bonjour,

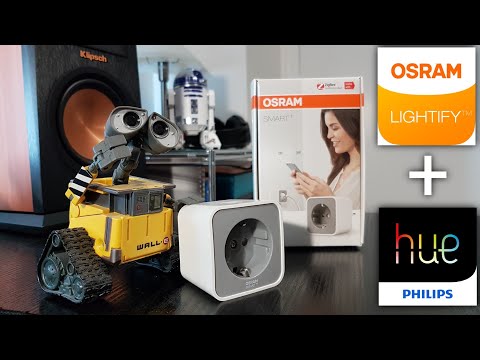

J’ai acheté ces prises connectées compatibles Zigbee :
J’ai également acheté une clé Conbee2 :
Ma clé est bien reconnue par mon RPI en mode persistante
J’ai lu qu’il fallait une passerelle deconz, du coup je suis passé par un conteneur deconz. Voici la configuration totale de mon docker-compose :
version: '3.7'
services:
homeassistant:
image: homeassistant/raspberrypi4-homeassistant:2021.1.5
container_name: home-assistant
logging:
driver: "json-file"
options:
max-size: "50M"
max-file: "5"
volumes:
- /opt/docker/homeassistant/config:/config
environment:
- TZ=France/Paris
devices:
- /dev/Z-Wave:/dev/Z-Wave
restart: always
network_mode: host
ports:
- 8123:8123
mosquitto:
build:
context: ./mosquitto/build/
dockerfile: dockerfile
container_name: mosquitto
ports:
- 1883:1883
- 9883:9883
- 10883:10883
- 11883:11883
volumes:
- /opt/docker/mosquitto/data:/mosquitto/data
- /opt/docker/mosquitto/logs:/mosquitto/logs
- /opt/docker/mosquitto/config:/mosquitto/config
- /opt/docker/mosquitto/ca_certificates:/mosquitto/ca_certificates
- /opt/docker/mosquitto/certs:/mosquitto/certs
- /opt/docker/mosquitto/config/conf.d:/mosquitto/config/conf.d
- /opt/docker/mosquitto/build:/mosquitto/build
restart: always
node-red:
image: nodered/node-red:1.2.7-12
container_name: node-red
environment:
- TZ=Europe/Paris
devices:
- /dev/Enocean:/dev/Enocean
ports:
- 1880:1880
volumes:
- /opt/docker/node-red/data:/data
restart: always
deconz:
image: marthoc/deconz:latest
container_name: deconz
restart: always
volumes:
- /opt/docker/deconz:/root/.local/share/dresden-elektronik/deCONZ
devices:
- /dev/Zigbee:/dev/ttyUSB0
environment:
- DECONZ_WEB_PORT=80
- DECONZ_WS_PORT=443
- DEBUG_INFO=1
- DEBUG_APS=0
- DEBUG_ZCL=0
- DEBUG_ZDP=0
- DEBUG_OTAU=0
ports:
- 8000:80
- 4443:443
Quand je me connecte sur l’URL je vois bien ma clé conbee2 :
Par contre je ne sais pas comment ajouter ces prises à la passerelle…
Ai-je fait quelque chose de mal ???
Merci d’avance pour vos retours et votre aide. Je ne connais pas bien le protocole Zigbee…
Ma configuration
System Health
| version | 2021.1.5 |
|---|---|
| installation_type | Home Assistant Container |
| dev | false |
| hassio | false |
| docker | true |
| virtualenv | false |
| python_version | 3.8.7 |
| os_name | Linux |
| os_version | 5.10.11-v7l+ |
| arch | armv7l |
| timezone | Europe/Paris |
Home Assistant Community Store
| GitHub API | ok |
|---|---|
| Github API Calls Remaining | 4943 |
| Installed Version | 1.10.1 |
| Stage | running |
| Available Repositories | 809 |
| Installed Repositories | 9 |
Home Assistant Cloud
| logged_in | false |
|---|---|
| can_reach_cert_server | ok |
| can_reach_cloud_auth | ok |
| can_reach_cloud | ok |
Lovelace
| dashboards | 1 |
|---|---|
| mode | storage |
| views | 8 |
| resources | 5 |
