Module WIFI climatisation AIRTON

GuillaumeG · Mai 1, 2025, 12:30

Je ne saurai dire si y’a moyen d’intégrer un « thermostat » esphome dans jeedom que j’ai que très peu vu / toucher. je pense que non.
j’ai commencé a mettre du mqtt dans le projet pour intégrer la gestion d’une sonde de température externe. Mqtt serait eventuellement une passerelle de communication vers des systèmes tiers comme jeedom.
Autrement, il restera toujours l’interface web local de l’esp pour accéder aux fonctionnalités, même si l’interface est moins « sympa ».Pour un pilotage via smartphone, ca fait le taf et c’est toujours moieux que la télécommande « pas ouf » fournie avec l’appareil.

Ptitdyno · Mai 1, 2025, 9:18

Merci de ton retour, esphome peut s intégrer sous jeedom.

Le module max3485 te sert à dialoguer sur le port série ? Sur l esp32 rien est implémenté en natif ?

Tu aurais des photos du montage

Merci

J ai lu ceci sur le forum arduino

'ESP32-S2 dispose de 3 ports série :

Serial : USB natif
Serial0 , UART0
Serial1, UART1

les UART0 et UART1 peuvent être associés à des GPIOs au choix
par défaut Serial0 débouche sur GPIO43 et 44 , non routés sur la carte WEmos S2 Mini
par défaut Serial1 débouche sur GPIO18 (RX1) et GPIO17 (TX1)

la ligne suivante route l’UART0, (Serial0) vers GPIO7 pour RX0 et GPIO9 pour TX0

GuillaumeG · Mai 2, 2025, 6:17

Sur mon setup matériel initial, j’ai mis un max3485, ne sachant pas quel était le protocole de communication réel de l’appareil. serie, 485 ou autre…
Au final, l’appareil dispose bien d’un simple port de communication série en 5v. Le max3485 n’est donc pas necessaire pour faire transiter le signal vers un esp32.

On peut brancher nativement les broches TX/RX d’un esp sur l’unité de clim si on est pas trop regardant sur la qualité hardware du montage.
En effet, attention, l’esp ne supporte pas officillement du 5v sur ses gpio. Pour faire les choses correctement, il faut une interface bidirectionnelle de correction de la tension 5<->3.3v entre les deux.
Pour mes tests je fonctionne sans et cela ne pose pas de soucis pour le moment.

Quasi n’importe quel pin du gpio peut etre rattaché à l’uart tant que qu’ils ne sont pas lié au vin / gnd ou patagé avec le wifi du module / port série de debug interne.

Dès que l’ensemble du developpement tient la route et a été suffisament testé, je pousserai toutes les infos necessaires et sources sur github pour pemettre a chacun de se faire son module de controle.
Un peu de patience, ca va venir

Forhorse · Mai 2, 2025, 6:23

Pour l’adaptation de niveau, si on veut faire ça propre sans trop se prendre la tête, un simple pont diviseur sur le RX de l’ESP fait largement le job.
Sur le TX si ça fonctionne sans rien autant laisser comme ça.

GuillaumeG · Mai 2, 2025, 8:10

un convertisseur bidirectionnel,sans isolation galva, (ce qui semble etre la solution retenu dans le produit airton) coute moins de 20 cts la piece, faut pas se priver de faire les choses bien pour si peu

Forhorse · Mai 2, 2025, 5:49

Vu qu’un level shifter c’est littéralement un transistor et 2 résistance, ça coute même pas 20ct de composants. Mais c’est sur qu’a ce prix, quand on en a en stock…
Quand on aura une solution officiellement fonctionnelle avec ESPhome, je pense que je ferrais un PCB dédié avec tout qui va bien…

Ptitdyno · Mai 2, 2025, 7:08

Ça tombe bien il me reste un esp32 s3 et j ai quelques lever shooter en stock

Je vais essayer quand la clim sera opérationnelle.

titityler · Mai 8, 2025, 6:37

Hello tout le monde
Nouveau sur HA et possesseur d’un Split AIRTON, je vais suivre ce sujet avec grande attention

Neuvidor · Mai 20, 2025, 2:20

Salut à toi @GuillaumeG,

Je me permets de revenir vers toi pour connaître l’état d’avancement de ton projet, car j’ai vraiment envie de me débarrasser du module « Officiel Airton » au profit d’un petit montage propre et local. Je déteste dépendre du cloud…

Je viens tout juste de finaliser le module pour connecter mon chauffe-eau ALDES, ce qui m’a permis de revendre la passerelle il y a quelques jours. Du coup, j’aimerais bien m’attaquer à la climatisation avant l’arrivée des beaux jours !

Richard_De_Oliveira · Mai 22, 2025, 8:44

bonjour tout le monde j ai une question? je me suis tromper en achetant un module wifi Airton (module 409945) il n ai pas compatible avec mon split ,le module qu il me faut est (module 409728) est il possible de modifier le module pour le rendre compatible?merci a vous et bonne journée.

Bokarth · Mai 28, 2025, 8:42

Bonjour à tous , toutes.

J’ai commandé et installé, non sans mal mais tout fonctionne parfaitement question froid et chaud , un Bi-split Airton option wifi…. Sauf qu’un split, le plus important en plus, n’a aucune possibilité de branchement du module wifi !!! Et évidemment, je n’ai vu cela qu’après avoir validé un split, et tout cablé, connecté etc……
Une idée ?
Est-ce qu’un techno détaché de Airton aura la possibilité de rendre cette connexion possible ?
Parce que démonter toute l’installation encastrée dans ba13, ready Clim etc s’il fait renvoyer le split,
Bonjour l’angoisse ! Et le taf !
Bref
Merci de vos retours …

Forhorse · Mai 28, 2025, 9:16

Tu es certain que ton unités intérieur n’a aucune possibilité de branchement du module ?
Parce que de base y a pas de différence que tu commandes avec ou sans le module

Bokarth · Mai 28, 2025, 9:44

Bonsoir,
Merci de ce retour
Ouaip,
J’ai bien vérifié, aucune connexion possible, Nada.
C’est surréaliste d’autant que c’est bien spécifié sur le carton d’emballage : option wifi….
Y’a aucun connecteur ni câble disponible pour le module ….
Ça fait suer, car l’appli est vraiment pratique -même si elle pourrait être encore optimisée, notamment via Watch….

titityler · Juin 12, 2025, 4:08

Tu as essayé de contacter le SAV ?
Normalement comme dit plus haut tous les Splits on la possibilité de recevoir le module.

Eucliwood090 · Juin 22, 2025, 7:28

Bonjour, je viens de tomber sur cette conversation, je suis l’heureux possesseur de 2 split Airton et comme vous je n’ai pas envie de mettre 200€ dans les modules wifi pour finir sur cette horreur de tuya… Avez-vous un GitHub avec le code pour espHome, j’ai essayé ce qu’il y a de posté sur le forum mais j’ai pas mal d’erreurs pour le mettre en place.

Eucliwood090 · Juin 22, 2025, 7:36

Et avez-vous pensé à l’autre solution disponible ? Émission IR de la télécommande grâce à un ESP32? j’ai fait ça sur 2 climatiseurs Fujitsu, ça fonctionne bien, mais malheureusement je n’ai pas trouvé les codes pour faire pareil avec la Airton

devildant · Juin 26, 2025, 1:29

Hello GuillaumeG,

genial se que tu as fait, aurait tu le yaml pour espHome a tout hasard ?
j’essai de faire la même chose pour un climatiseur teknopoint qui utilise ce même module acw02, mais je misère ^^

ps ca fonctionne sur un esp8266 ? car j’ai vu que quelqu’un avait dit a un moment que ca marcherait pas mais c’est toujours le cas ?

devildant · Juin 28, 2025, 1:17

Hello @Maverick80, @Neuvidor, @GuillaumeG,

je sollicite votre aide :), pour ma part j’ai un climatiseur teknoPoint qui utilise un acw02, j’ai analysé les trame envoyer par le acw02 avec un esp32 abaisseur de tension 12v->5v et un Optocoupleur 1 Canal PC817.

j’ai cartographier comme j’ai pu les trame et j’ai obtenue ceci :

on cool :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:39:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:4C:BE:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

on dry :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:1A:0A:02:00:00:00:00:00:02:64:12:BF:44:42:31:31:33:37:30:8B:7E:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

on fan :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:0B:0A:02:00:00:00:00:00:03:64:12:BF:44:42:31:31:33:37:30:48:83:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

off :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:03:0A:02:00:00:00:00:00:03:64:12:BF:44:42:31:31:33:37:30:29:61:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:39:0A:02:02:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:78:6A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:39:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:19:EB:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:39:0A:02:80:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:B9:8A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:39:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:19:EB:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:39:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:4C:BE:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:39:0B:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:B0:EF:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:39:0C:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:C5:5E:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target fan 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:0B:0A:02:00:00:00:00:00:03:64:12:BF:44:42:31:31:33:37:30:48:83:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target fan 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:0B:0B:02:00:00:00:00:00:03:64:12:BF:44:42:31:31:33:37:30:B4:D2:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target fan 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:0B:0C:02:00:00:00:00:00:03:64:12:BF:44:42:31:31:33:37:30:C1:63:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target dry 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:1A:0A:02:00:00:00:00:00:02:64:12:BF:44:42:31:31:33:37:30:8B:7E:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target dry 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:1A:0B:02:00:00:00:00:00:02:64:12:BF:44:42:31:31:33:37:30:77:2F:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target dry 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:1A:0C:02:00:00:00:00:00:02:64:12:BF:44:42:31:31:33:37:30:02:9E:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

eco on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:02:01:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8D:65:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

eco off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:1D:A4:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:02:40:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:ED:95:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:1D:A4:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 1:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:1D:A4:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 2:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:03:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8D:F5:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 3:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:04:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:BC:47:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 4:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:05:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:2C:16:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 5:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:06:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:DC:E6:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0A:12:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:D8:A9:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:48:F1:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed auto:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:48:F1:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 20%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8B:35:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 40%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 60%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:39:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:4C:BE:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 80%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:49:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:87:E4:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 100%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:59:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:44:20:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed silence:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:59:4A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:90:35:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed turbo:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:D9:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:9A:09:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °C:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °F:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:2A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:45:71:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

trame inconnue et periodique:
[14:47:59][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:06][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:52:00:12:BF:00:BB:98
[14:48:16][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:27][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:37][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:47][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:49][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B
[14:48:59][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:07][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:52:00:12:BF:00:BB:98
[14:49:17][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:27][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:37][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:47][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:49][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

j’ai l’impression que c’est les même que pour airton, c’est la première fois que je fais ca, donc je suis un peu largué ^^
qu’en pensez vous ?
auriez vous a tout hasard un exemple fonctionnel uart avec un esphome pour climatiseur ? l’histoire que je vois le code et comment agencer ca ?

ps si jamais ca interesse quelqu’un voila mon yaml pour esphome pour sniffer les trames:

esphome:
  name: analyse_trames_ac

esp32:
  board: esp32dev

logger:
  level: DEBUG
  baud_rate: 0     # désactive les logs sur UART0

wifi:
  ssid: "xxxx"
  password: "xxxx"

# Pour voir les logs OTA
api:
  password: "motdepasse_api"
ota:
  platform: esphome
  password: "MonMotDePasseOTA"

uart:
  id: uart_log
  tx_pin:
    number: GPIO17
    inverted: true
  rx_pin:
    number: GPIO16
    inverted: true
  baud_rate: 9600  # ou 115200 si nécessaire
  debug:
    direction: RX
    dummy_receiver: true

devildant · Juin 28, 2025, 4:45

j’ai refais une analyse des trames, j’ai quelque difficulté avec le RX car je suis obliger d’ajouter une resistance, sinon les commande ne parte pas, et lorsque le groupe exterieur se declenche j’ai des trame partiel.
Pour info TX/RX du ACW02

TXD cable Blanc :

1 Mode cool:

on :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:F5:62:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

off :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:11:0B:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:94:80:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:02:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:94:E3:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:F5:62:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:80:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:55:03:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:F5:62:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0A:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:09:33:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0B:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:F5:62:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:19:0C:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:80:D3:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

eco on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:02:01:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:D3:D6:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

eco off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:43:17:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:02:40:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B3:26:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:43:17:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 1:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:02:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:D1:C9:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 2:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:03:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:41:98:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 3:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:04:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:70:2A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 4:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:05:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:E0:7B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 5:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:06:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:10:8B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:01:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B3:E7:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:09:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:23:B6:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed auto:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:09:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:76:E3:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 20%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:19:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B5:27:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 40%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B1:68:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 60%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:39:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:72:AC:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 80%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:49:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B9:F6:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 100%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:59:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:7A:32:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed silence:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:59:4C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:AE:27:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed turbo:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:D9:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:A4:1B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °C:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:0C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:B1:68:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °F:
7A:7A:D5:21:22:00:00:A3:0A:0A:1A:05:00:29:2C:00:00:00:00:00:00:01:64:12:C7:44:42:31:31:33:37:30:7B:63:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:

2 Mode dry:

on :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:8D:0A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

off :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:12:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:EC:E8:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:02:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:EC:8B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

night off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:8D:0A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:80:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:2D:6B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:8D:0A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0A:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:04:EA:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0B:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:F8:BB:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:8D:0A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:40:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:7D:3B:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:8D:0A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 1:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:02:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:4C:48:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 2:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:03:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:DC:19:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 3:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:0C:04:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:B8:FE:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 4:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:00:00:1A:0C:05:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:7D:FA:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 5:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:0C:06:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:D8:5F:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:0C:01:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:E9:ED:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:0C:00:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:79:BC:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °C:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:0C:00:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:79:BC:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °F:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:1A:2C:00:00:00:00:00:00:02:64:12:C7:44:42:31:31:33:37:30:B3:B7:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

3 Mode fan:

on :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0C:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:BA:41:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

off :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:03:0C:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:DB:A3:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0C:00:80:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:1A:20:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

display off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0C:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:BA:41:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 26 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:33:A1:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 27 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0B:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:CF:F0:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature target cool 28 :
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0C:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:BA:41:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:00:40:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:C3:90:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

purifier off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:33:A1:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 1:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:02:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:53:00:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 2:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:03:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:C3:51:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 3:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:04:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:F2:E3:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 4:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:05:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:62:B2:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing position 5:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:06:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:92:42:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical on:
7A:7A:D5:21:22:00:00:A3:0A:0A:1B:05:00:0B:0A:01:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:A3:F0:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

swing verical off:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:0B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:80:C2:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed auto:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:0B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:80:C2:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 20%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:1B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:43:06:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 40%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:2B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:47:49:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 60%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:3B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:84:8D:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 80%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:4B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:4F:D7:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed 100%:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:5B:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:8C:13:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed silence:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:5B:4A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:58:06:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

fan speed turbo:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:DB:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:52:3A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °C:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:DB:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:52:3A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

temperature °F:
7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:DB:2A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:98:31:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B

4 trame inconnue et periodique:
[14:47:59][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:06][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:52:00:12:BF:00:BB:98
[14:48:16][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:27][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:37][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:47][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:48:49][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B
[14:48:59][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:07][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:52:00:12:BF:00:BB:98
[14:49:17][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:27][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:37][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:47][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[14:49:49][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1A:00:00:29:0A:02:00:00:00:00:00:01:64:12:BF:44:42:31:31:33:37:30:8F:7A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B
[18:21:02][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:56:00:12:C7:00:7B:4B
[18:21:12][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:21:22][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:21:32][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:21:42][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:21:50][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:DB:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:52:3A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B
[18:22:00][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:22:02][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:56:00:12:C7:00:7B:4B
[18:22:12][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:22:23][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:22:32][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:22:42][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:22:50][D][uart_debug:114]: <<< 7A:7A:D5:21:22:00:00:A3:0A:0A:1C:00:00:DB:0A:00:00:00:00:00:00:03:64:12:C7:44:42:31:31:33:37:30:52:3A:7A:7A:D5:21:1C:00:00:A6:0A:0A:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:52:0B
[18:23:00][D][uart_debug:114]: <<< 7A:7A:D1:21:0D:00:00:A4:0A:0A:00:25:25
[18:23:02][D][uart_debug:114]: <<< 7A:7A:D5:21:12:00:00:AC:0A:0A:06:56:00:12:C7:00:7B:4B

RXD cable Jaune :

1 Mode cool:

on :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:02:00:00:00:00:00:00:00:EB:91

off :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:01:0A:02:00:00:00:00:00:00:00:01:10

night on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:02:00:00:00:00:00:00:F2:33

night off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

display on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:80:00:00:00:00:00:00:FA:91

display off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

temperature target cool 26 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

temperature target cool 27 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0B:00:00:00:00:00:00:00:00:A2:1D

temperature target cool 28 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0C:00:00:00:00:00:00:00:00:92:3B

eco on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:01:00:00:00:00:00:00:F2:00

eco off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

purifier on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:40:00:00:00:00:00:00:F6:51

purifier off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

swing position 1:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:02:00:00:00:00:00:00:00:EB:91

swing position 2:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:03:00:00:00:00:00:00:00:27:50

swing position 3:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:04:00:00:00:00:00:00:00:C1:11

swing position 4:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:05:00:00:00:00:00:00:00:0D:D0

swing position 5:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:06:00:00:00:00:00:00:00:18:90

swing verical on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:01:00:00:00:00:00:00:00:FE:D1

swing verical off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

fan speed auto:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:06:00:00:00:00:00:00:00:18:90

fan speed 20%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:19:0A:06:00:00:00:00:00:00:00:8D:91

fan speed 40%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:29:0A:06:00:00:00:00:00:00:00:72:91

fan speed 60%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:39:0A:06:00:00:00:00:00:00:00:E7:90

fan speed 80%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:49:0A:06:00:00:00:00:00:00:00:CC:92

fan speed 100%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:59:0A:06:00:00:00:00:00:00:00:59:93

fan speed silence:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:59:4A:06:00:00:00:00:00:00:00:9A:A2

fan speed turbo:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:D9:0A:06:00:00:00:00:00:00:00:B1:94

temperature °C:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:0A:00:00:00:00:00:00:00:00:32:10

temperature °F:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:09:2A:00:00:00:00:00:00:00:00:F3:89

2 Mode dry:

on :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

off :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:12:0A:02:00:00:00:00:00:00:00:9B:E1

night on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:02:00:00:00:00:00:00:B1:43

night off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

display on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:80:00:00:00:00:00:00:B9:E1

display off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

temperature target cool 26 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

temperature target cool 27 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0B:02:00:00:00:00:00:00:00:E1:6D

temperature target cool 28 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0C:02:00:00:00:00:00:00:00:D1:4B

purifier on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:40:00:00:00:00:00:00:B5:21

purifier off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

swing position 1:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:02:00:00:00:00:00:00:00:71:60

swing position 2:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:03:00:00:00:00:00:00:00:BD:A1

swing position 3:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:04:00:00:00:00:00:00:00:5B:E0

swing position 4:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:05:00:00:00:00:00:00:00:97:21

swing position 5:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:06:00:00:00:00:00:00:00:82:61

swing verical on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0C:01:00:00:00:00:00:00:00:C4:0B

swing verical off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0C:00:00:00:00:00:00:00:00:08:CA


temperature °C:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:0A:06:00:00:00:00:00:00:00:82:61

temperature °F:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1A:2A:06:00:00:00:00:00:00:00:43:F8


3 Mode fan:

on :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0A:06:00:00:00:00:00:00:00:D2:31

off :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:03:0A:06:00:00:00:00:00:00:00:38:B0

display on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0A:06:80:00:00:00:00:00:00:1A:B0

display off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0A:06:00:00:00:00:00:00:00:D2:31

temperature target cool 26 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0A:06:00:00:00:00:00:00:00:D2:31

temperature target cool 27 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0B:06:00:00:00:00:00:00:00:42:3C

temperature target cool 28 :
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:06:00:00:00:00:00:00:00:72:1A

purifier on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:06:40:00:00:00:00:00:00:B6:5B

purifier off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:06:00:00:00:00:00:00:00:72:1A

swing position 1:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:02:00:00:00:00:00:00:00:81:1B

swing position 2:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:03:00:00:00:00:00:00:00:4D:DA

swing position 3:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:04:00:00:00:00:00:00:00:AB:9B

swing position 4:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:05:00:00:00:00:00:00:00:67:5A

swing position 5:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:06:00:00:00:00:00:00:00:72:1A

swing verical on:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:5B:0C:01:00:00:00:00:00:00:00:D5:58

swing verical off:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:5B:0C:00:00:00:00:00:00:00:00:19:99

fan speed auto:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:0B:0C:01:00:00:00:00:00:00:00:94:5B

fan speed 20%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:1B:0C:06:00:00:00:00:00:00:00:E7:1B

fan speed 40%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:2B:0C:06:00:00:00:00:00:00:00:18:1B

fan speed 60%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:3B:0C:06:00:00:00:00:00:00:00:8D:1A

fan speed 80%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:4B:0C:06:00:00:00:00:00:00:00:A6:18

fan speed 100%:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:5B:0C:06:00:00:00:00:00:00:00:33:19

fan speed silence:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:5B:4C:06:00:00:00:00:00:00:00:F0:28

fan speed turbo:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:DB:0C:06:00:00:00:00:00:00:00:DB:1E

temperature °C:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:DB:0C:06:00:00:00:00:00:00:00:DB:1E

temperature °F:
7A:7A:21:D5:18:00:00:A1:00:00:00:00:DB:2C:06:00:00:00:00:00:00:00:1A:87


4 Trame inconnu qui arrive de facon periodique:

[17:15:56][D][uart_debug:114]: <<< 7A:7A:21:D5:0C:00:00:AB:0A:0A:FC:F9
[17:15:56][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:01:00:02:D8:1F:12:92:5D:95:A3:B1
[17:15:56][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:01:00:02:D8:1F:12:92:5D:95:A3:B1
[17:16:06][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:01:00:02:D8:1F:12:92:5D:95:A3:B1
[17:16:16][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:01:00:02:D8:1F:12:92:5D:95:A3:B1

[17:36:17][D][uart_debug:114]: <<< 7A:7A:21:D5:0C:00:00:AB:0A:0A:FC:F9
[17:36:31][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:00:00:02:D8:1F:12:92:5D:95:33:BC
[17:36:41][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:00:00:02:D8:1F:12:92:5D:95:33:BC
[17:36:51][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:00:00:02:D8:1F:12:92:5D:95:33:BC
[17:37:01][D][uart_debug:114]: <<< 7A:7A:21:D1:1B:00:00:A5:0A:0A:01:03:00:00:00:00:00:00:02:D8:1F:12:92:5D:95:33:BC

Note :
bon il semblerait que le:

TXD cable blanc soit enfaite le RX
RXD cable jaune soit enfaite le TX

Edite : Bon finalement je fais mon propre code espHome, et je me parle a moi même haha

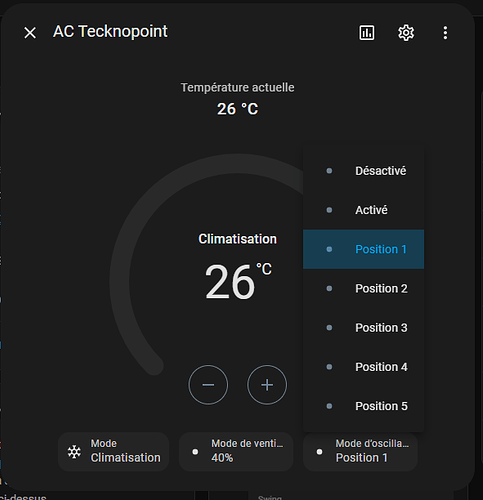

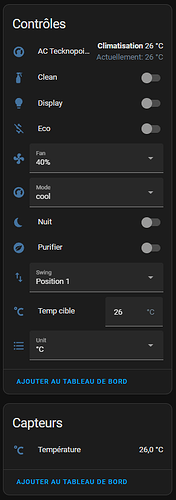

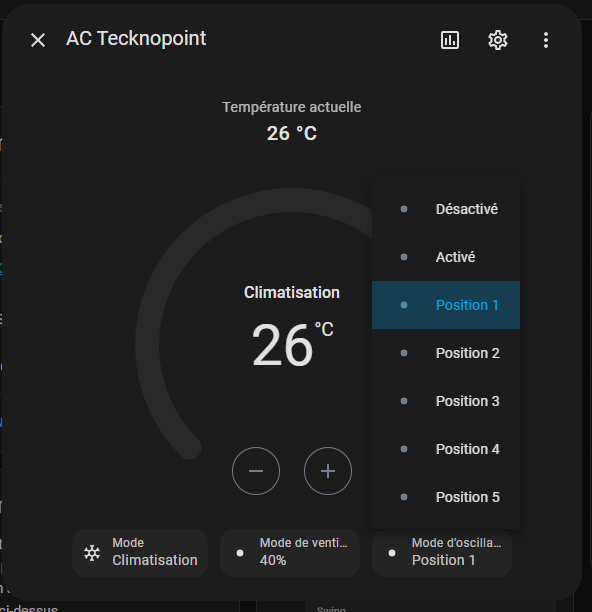

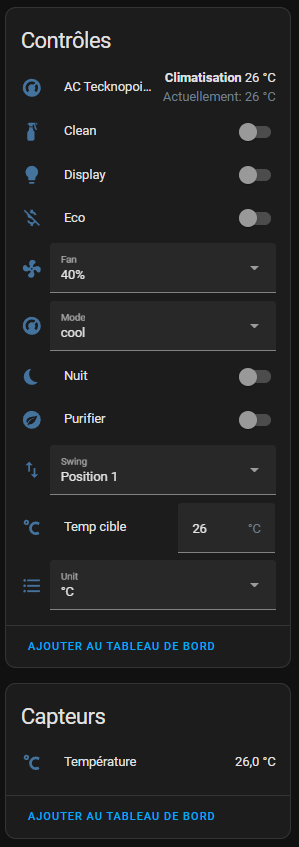

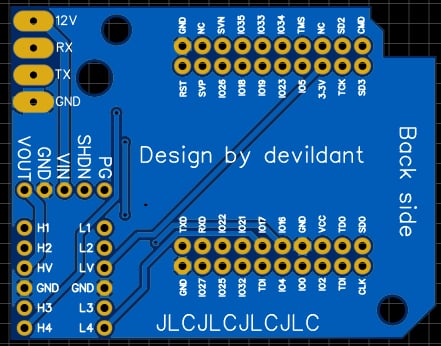

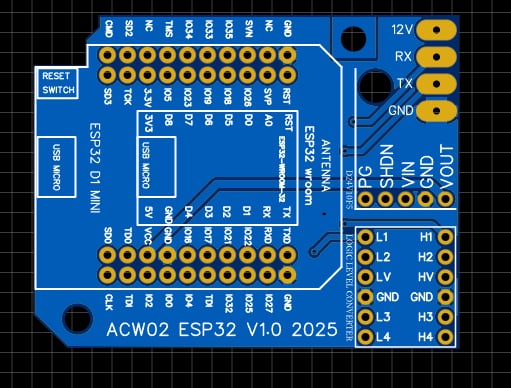

vu que j’ai deja un code fonctionnel, même si il me reste la partie MQTT a voir car le natif espHome sur ha est trop limité, je me suis fait un pcb (première fois que je fais ca, j’espère ne pas m’être trompé, mais bon a 4€ le tout au pire…

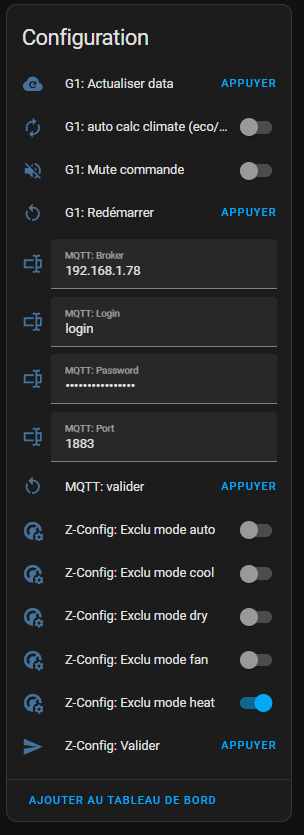

Edite 2: j’ai bien avancer sur mon code même si je dois nettoyer le code :

Thibs24 · Juillet 8, 2025, 11:28

Top !!! Super boulot
Publieras tu ton code esphome ici ou ailleurs sur github ?
Malheureusement je ne pense pas que nous aurons des nouvelles de GuillaumeG …
